Ceiling Speaker Factory | 100V PA Ceiling Speakers China-Ceiling Speaker C3-Ceiling Speaker C3

Product Specifications

Model	C3
Rated Power	5W / 10W / 15W
Input Voltage	100V
Frequency Response	70Hz – 20kHz
Sensitivity (SPL @1W/1m)	90 ± 3dB
Woofer Speaker Driver	140mm (5.5")
Tweeter Speaker Driver	25mm (1")

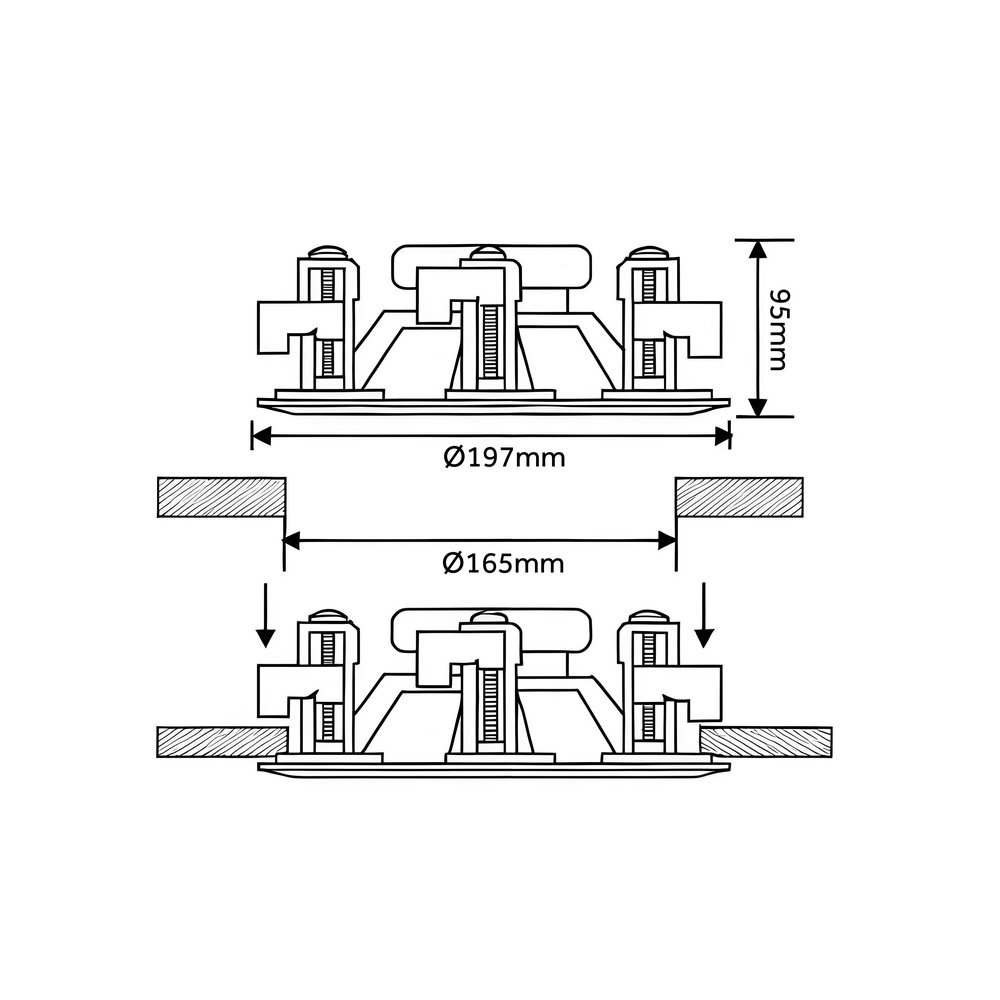

Cut-out Size	Ø165 mm
Dimensions	Ø197 × 95 mm
Frame Material	ABS
Grille Material	Metal mesh
Net Weight	1.1 kg
Gross weight	21 kg / 16pcs
Packing dimension	45.5 × 45.5 × 47 cm

Product Description

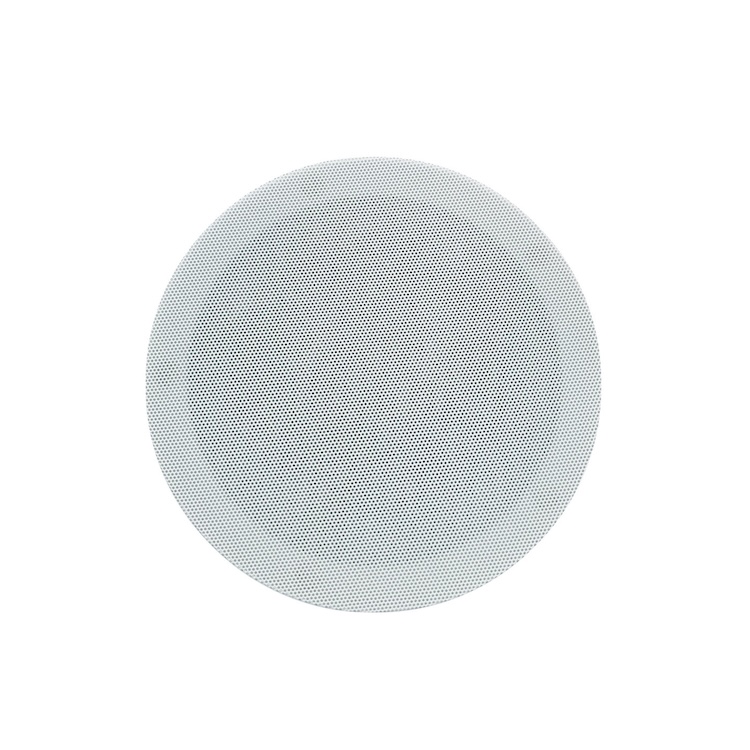

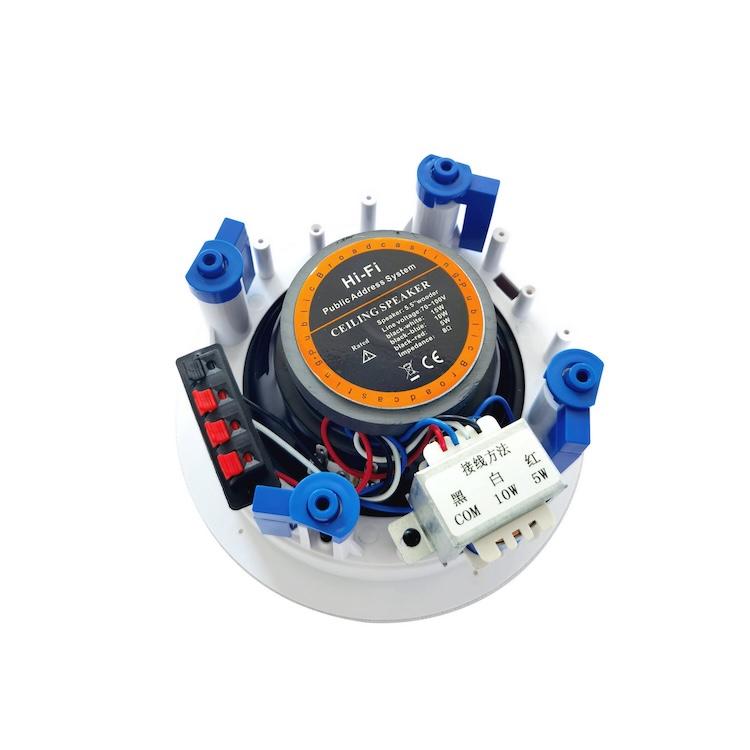

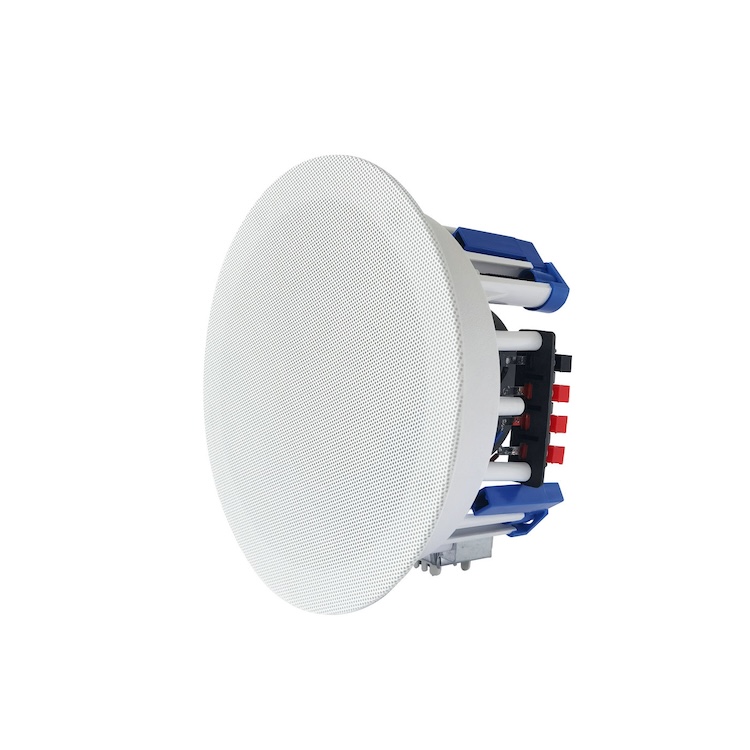

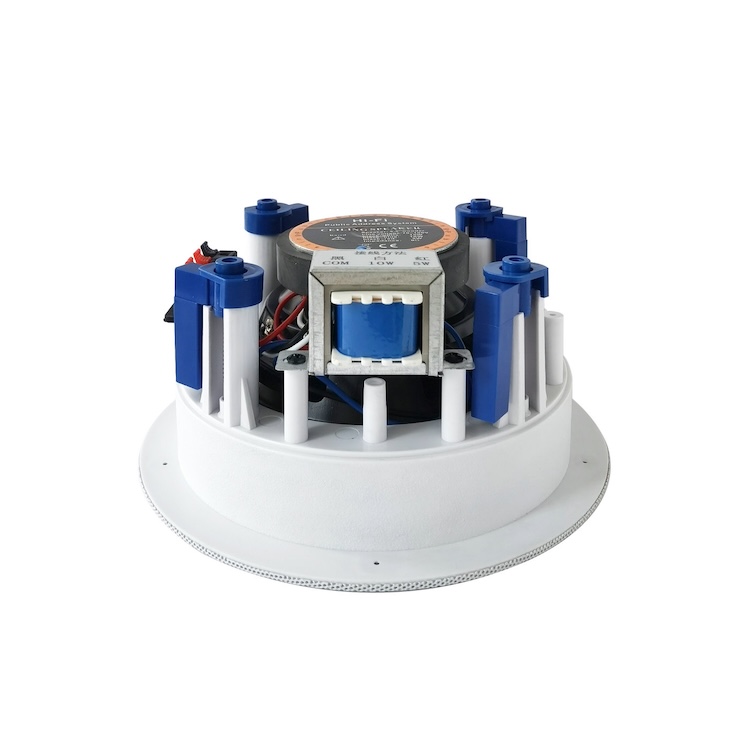

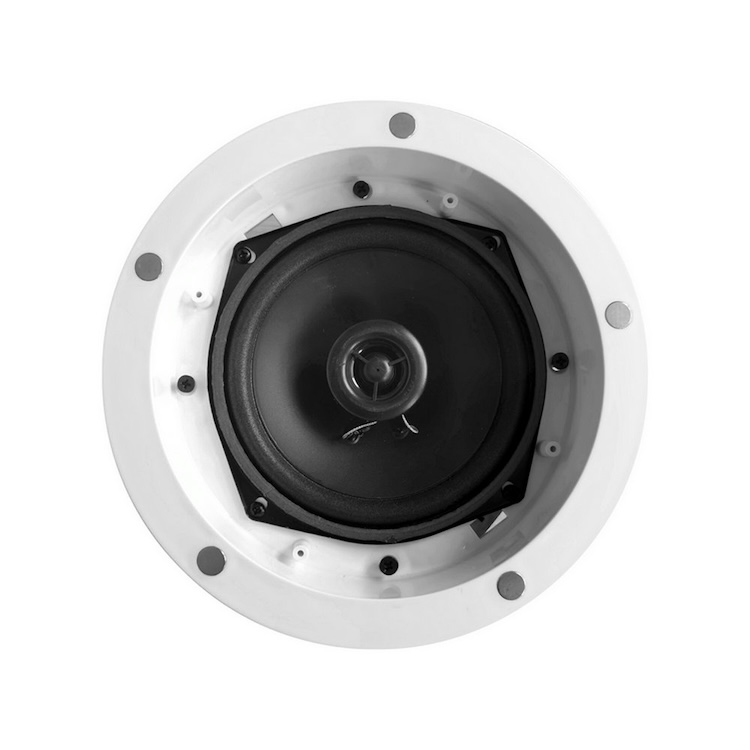

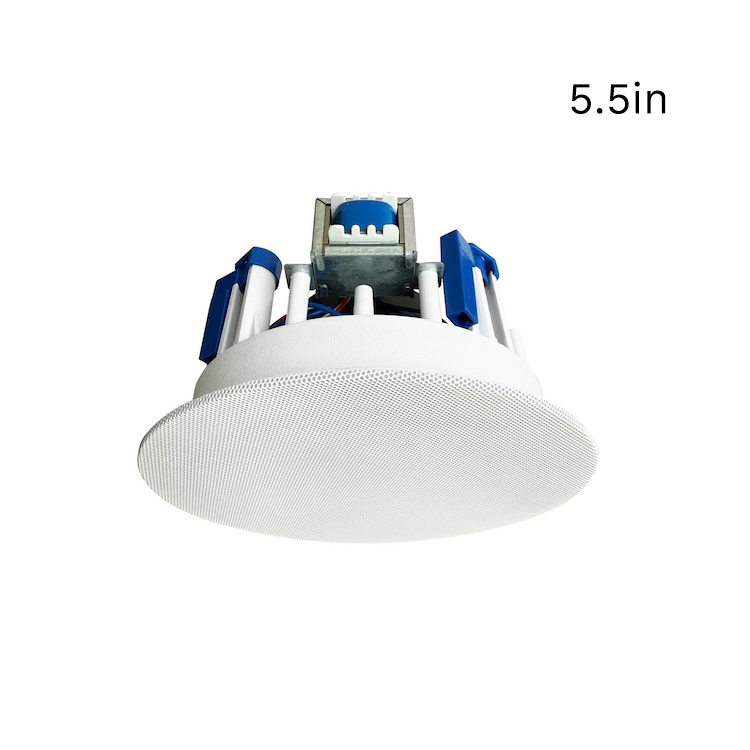

5.5” Frameless In Ceiling Flush Mount Speaker C3

Designed to blend into any commercial interior, this 5.5-inch frameless ceiling speaker delivers reliable audio for both background music and announcement systems.It pairs a 140mm woofer with a coaxially mounted silk dome tweeter, ensuring clean vocal paging and balanced music playback.The magnetic metal grille snaps on effortlessly for a truly flush, minimalist look, while the adjustable clamps securely fit ceiling thicknesses from 10mm to 42mm.

OEM and ODM customization are available, including logo printing, packaging, product color and specification customization according to different project requirements.Features

Features

* 100V ceiling speaker

* 140mm (5.5”) woofer + 25mm (1”) silk dome tweeter

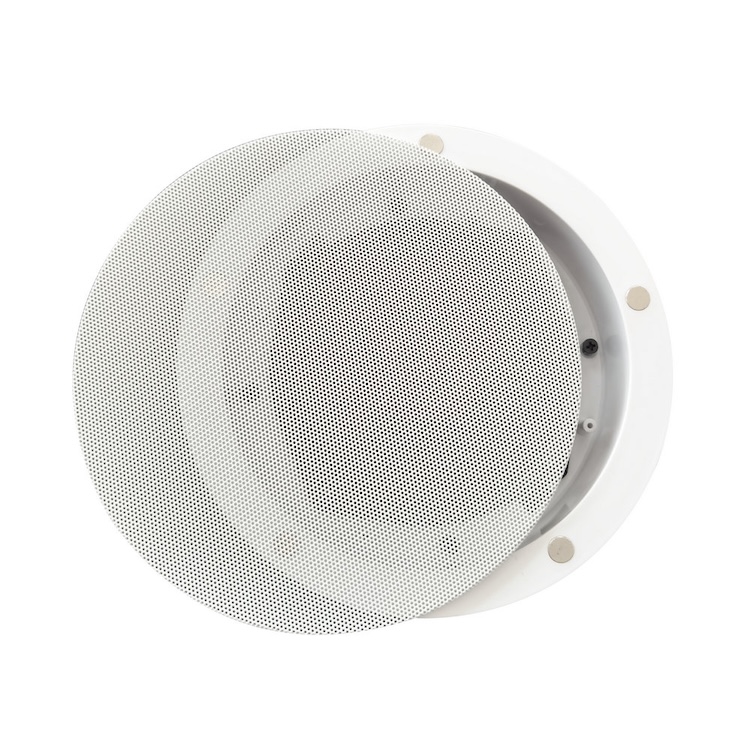

* Magnetic frameless metal grille

* Clear sound for BGM and paging

* Easy ceiling installation

* Suitable for ceiling thickness 10–42mm

* OEM & ODM customization available

* CE & RoHS approved
